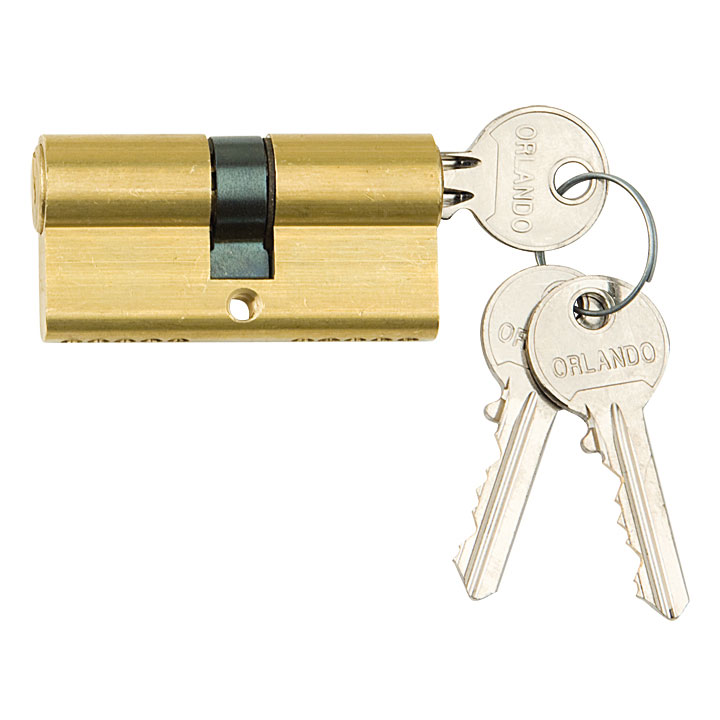

Brass Cylinder

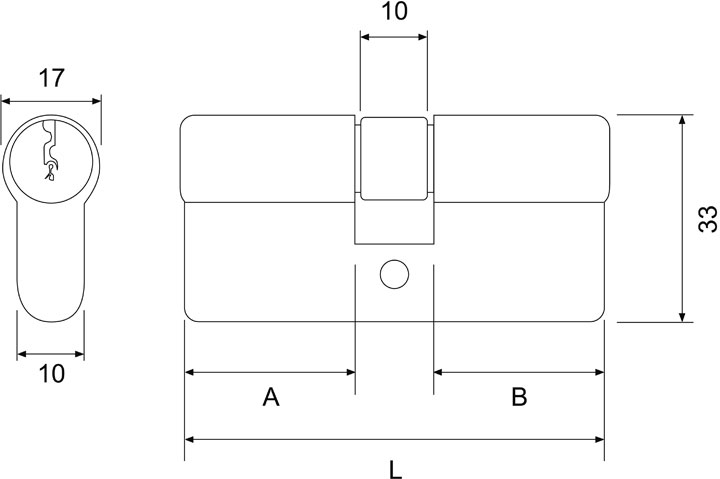

Technical drawing

Brass Cylinder - technical drawing

Cod. 150

Brass Cylinder.

Item:: 150/C 54
Description:: Shaped brass safety cylinder - Central - 54 mm
Size:: a=22.0 b=22.0 l=54.0

Add to quotation

Item:: 150/C 60
Description:: Shaped brass safety cylinder - Central - 60 mm
Size:: a=25.0 b=25.0 l=60.0

Add to quotation

Item:: 150/C 70
Description:: Shaped brass safety cylinder - Central - 70 mm
Size:: a=30.0 b=30.0 l=70.0

Add to quotation

Item:: 150/C 80
Description:: Shaped brass safety cylinder - Central - 80 mm
Size:: a=35.0 b=35.0 l=80.0

Add to quotation

Item:: 150/D 58
Description:: Shaped brass safety cylinder - Decentralized - 58 mm
Size:: a=22.0 b=26.0 l=58.0

Add to quotation

Item:: 150/D 60
Description:: Shaped brass safety cylinder - Decentralized - 60 mm
Size:: a=22.0 b=28.0 l=60.0

Add to quotation

Item:: 150/D 65
Description:: Shaped brass safety cylinder - Decentralized - 65 mm
Size:: a=25.0 b=30.0 l=65.0

Add to quotation

Item:: 150/D 70
Description:: Shaped brass safety cylinder - Decentralized - 70 mm
Size:: a=25.0 b=35.0 l=70.0

Add to quotation

Item:: 150/D 75
Description:: Shaped brass safety cylinder - Decentralized - 75 mm
Size:: a=25.0 b=40.0 l=75.0

Add to quotation

Item:: 150/D 80
Description:: Shaped brass safety cylinder - Decentralized - 80 mm
Size:: a=25.0 b=45.0 l=80.0

Add to quotation

Finishings

Available Finishings

finitura Natural Brass

C1

Natural Brass

finitura Matt Nickel

C9

Matt Nickel

finitura Polished Nickel

C7

Polished Nickel

Plates

Is this not what you are looking for yet? Choose a different plate from the Accessories section: create a unique handle!

View all plates

Rosettes

Do you prefer rosettes? Choose a rosette within the Accessories section: find the perfect match for your handle!

View all rosettes

Locks

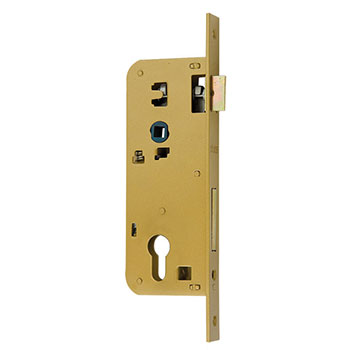

Do you need a complete set? Add an Orlando mortise lock!
