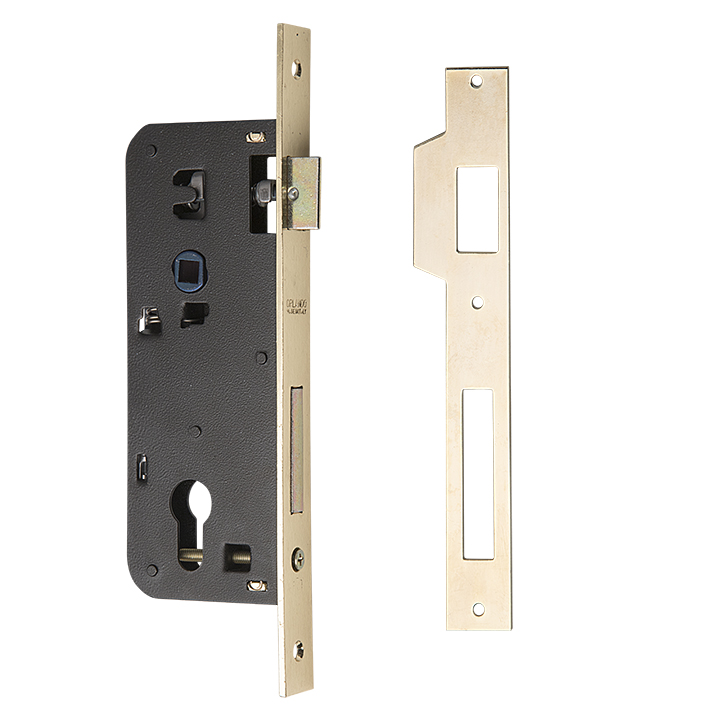

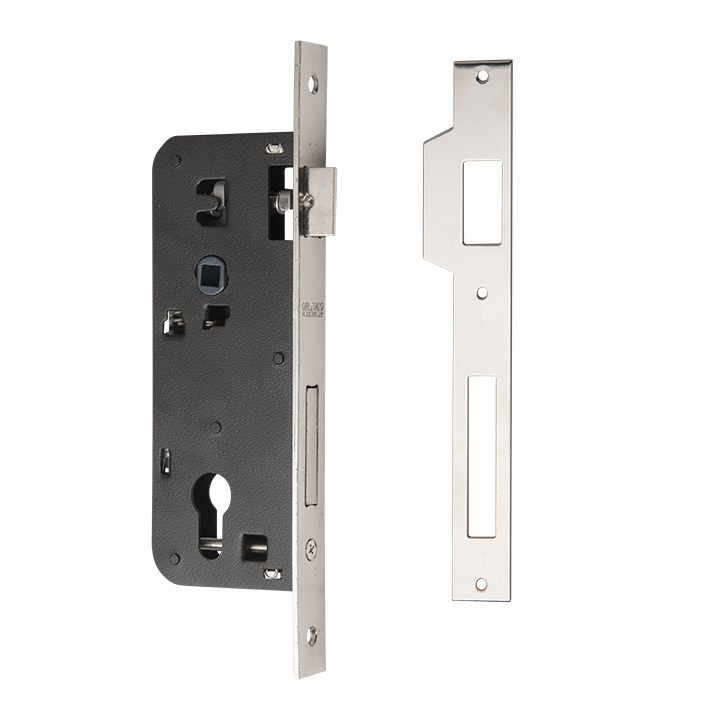

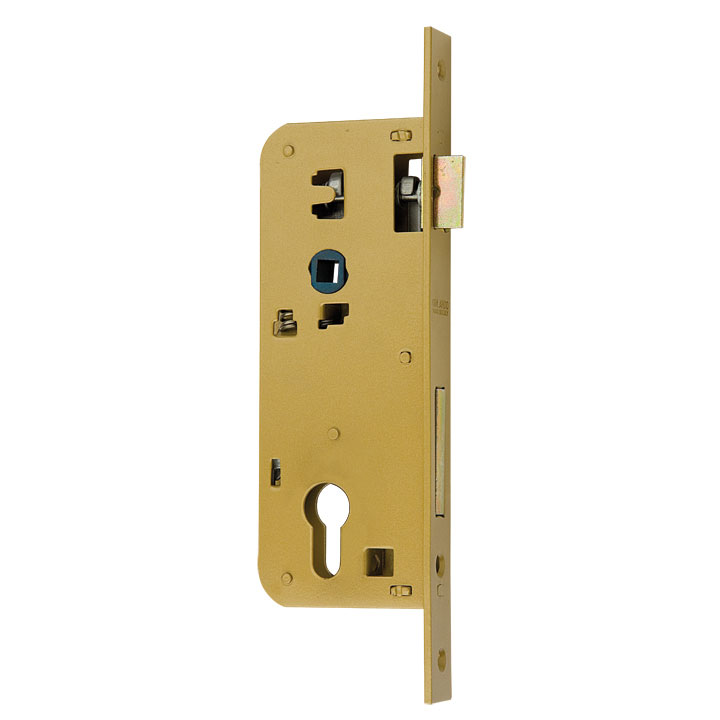

Insert Lock

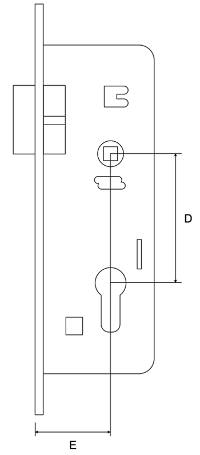

Technical drawing

Insert Lock - technical drawing

Cod. 104

Mortice Lock for wooden doors.

Item:: 104 30
Description:: Insert lock - Sq. 8 - 2 turns
Size:: d=85.0 e=30.0

Add to quotation

Item:: 104 35
Description:: Insert lock - Sq. 8 - 2 turns
Size:: d=85.0 e=35.0

Add to quotation

Item:: 104 40
Description:: Insert lock - Sq. 8 - 2 turns
Size:: d=85.0 e=40.0

Add to quotation

Item:: 104 45
Description:: Insert lock - Sq. 8 - 2 turns
Size:: d=85.0 e=45.0

Add to quotation

Item:: 104 50
Description:: Insert lock - Sq. 8 - 2 turns
Size:: d=85.0 e=50.0

Add to quotation

Item:: 104 60
Description:: Insert lock - Sq. 8 - 2 turns
Size:: d=85.0 e=60.0

Add to quotation

Item:: 104 70
Description:: Insert lock - Sq. 8 - 2 turns
Size:: d=85.0 e=70.0

Add to quotation

Finishings

Available Finishings

finitura Matt Nickel

S9

Matt Nickel

finitura Polished Nickel

S7

Polished Nickel

finitura Brass Plated

S1

Brass Plated

finitura Gold Painted

S5

Gold Painted

finitura Bronze Plated

S3

Bronze Plated

finitura Scratched Bronzed

S27

Scratched Bronzed
